Yamaha DBR10 Active speaker


Price:
€459

Tax included Shipping calculated at checkout

Stock:
In stock
Add to Wishlist
My Wishlist

Description

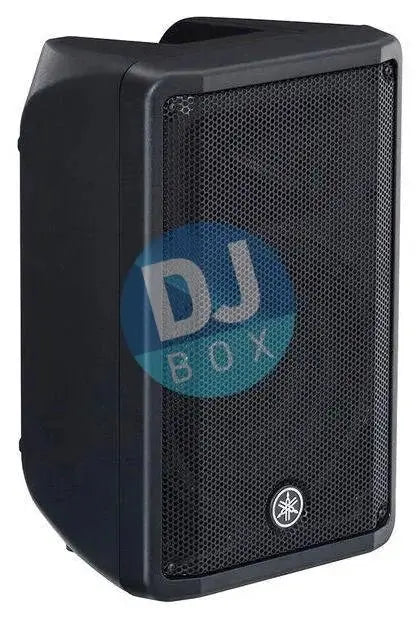

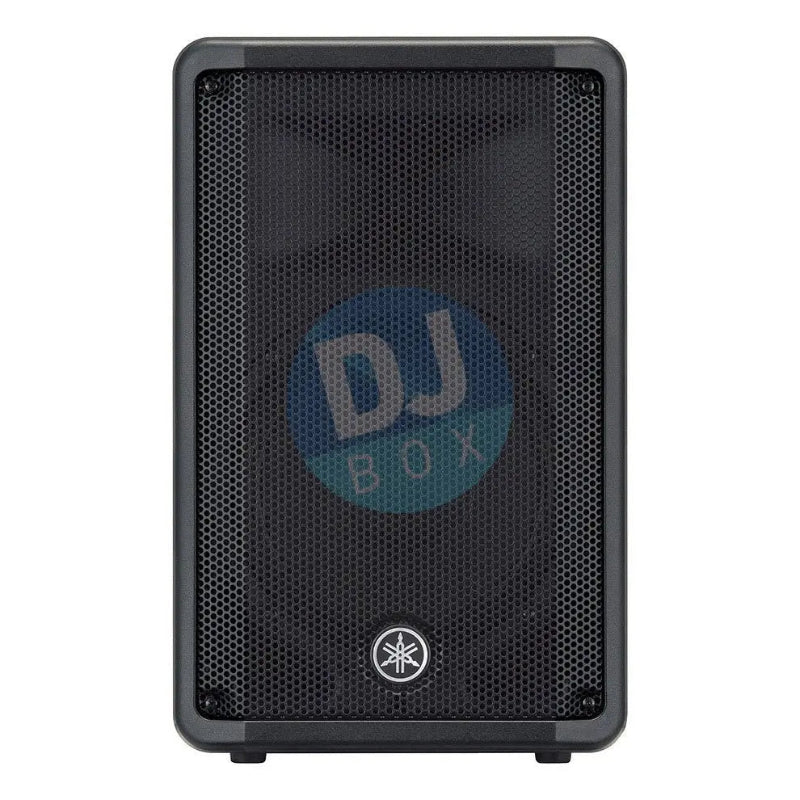

Yamaha DBR10 Active speaker

Yamaha DBR10 Active speaker is the smallest of the Yamaha DBR series. DBR Series powered loudspeakers harness the same state-of-the-art Yamaha DSP, amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level.

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.



Specs:

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 55Hz – 20kHz
Nominal coverage H 90°
V 60°
Components LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis) 129dB SPL

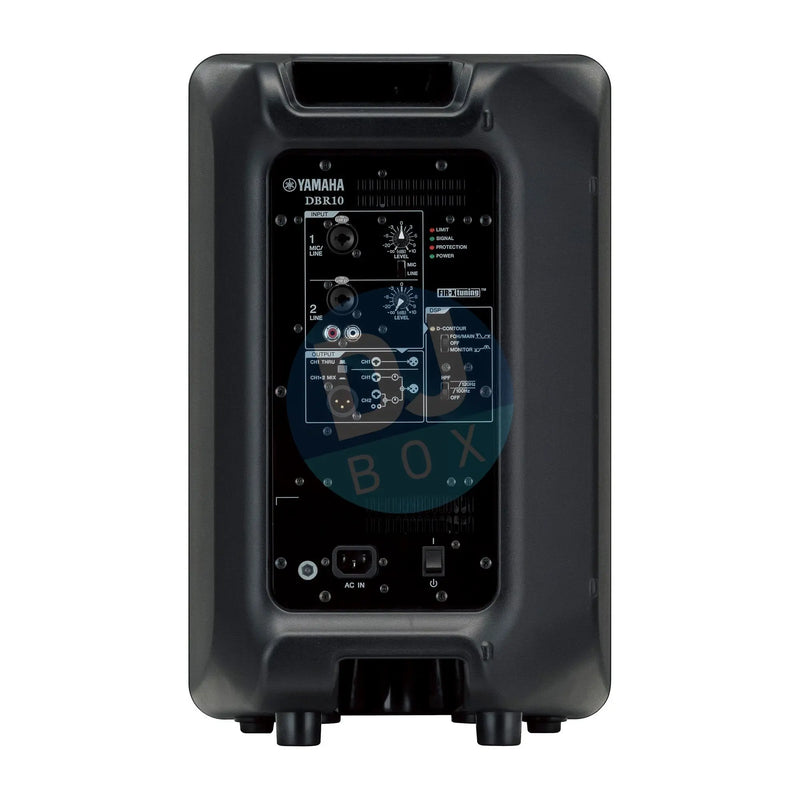

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 60W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Top x 1
Flying and mounting hardware Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions W 308mm (12.1")
H 493mm (19.4")
D 289mm (11.4")
Net weight 10.5 kg (23.2 lbs)
