The Showtec Phantom 65 Spot is an LED Moving Head, with a bright white light source optimised to deliver a powerful 65W light output. The moving head allows for dynamic lighting effects and a wide angle light spread. With precise control and a wide range of features, the Showtec Phantom 65 Spot is an ideal choice for any lighting project. The prism function gives enhanced coverage and features and is a superb addition!
• 7 Bi-Rotating gobo's & 8 colours
• Powercon In- & Output
• Gobo shake, gobo rotate and 3-facet prism
• Quick Lock Brackets
The Showtec Phantom 65 Spot is a very compact multifunctional moving light, specially designed for use on small to mid-sized stages, by DJs and entertainers.
It is the ultimate successor to the Phantom Spot 50 and next to its stylish looks, it is just packed with great features.
Full 65W white LED light output, 1 glass + 6 metal gobos, with gobo-flow and shake, 8 dichroic-filters + white enabling split colours and rainbow-flow effects, a 3-facet prism and great new optics with adjustable manual focus are all on board. It is just hard to believe that this compact fixture can carry all these features!
Thanks to its size and weight of only 6kg, this moving head can be mounted in any position with just one clamp. Also, Powercon and DMX in- and output allow for easy daisy-chaining of the Phantom 65 spot.
The Showtec Phantom series, a household name in the entertainment lighting industry, are a range of very reliable fixtures with low power consumption and high performance. Taking into account today's lighting demands, this series offers a range of modern fixtures such as Spot, Wash, Beam, Matrix FX, and Hybrid.
Razor sharp beams, colorful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.
The Phantom is Back!
Showtec Phantom – the household name in the entertainment lighting industry is back with a new series of extremely reliable and versatile fixtures.
And not just its exterior looks better; technically updated to the latest specifications, without compromising reliability, these fixtures now offer more and better functionalities than ever before.
Razor sharp beams, colorful matrix effects or spectacular gobo imagery, a Showtec Phantom will, just as any true superhero, never disappoint you.
Spot 65 and 130, R3 beam, 3R hybrid or Matrix FX:
Showtec Phantom – the choice of heroes!
Specifications
Output
Beam Angle: 16°
Light Source: 1 x 65W White LED
Lux @ 5m: 1870
Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 180W max. at full output
Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 13ch /Basic 8ch
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Manual focus
Prism: 3-facet prism
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colours

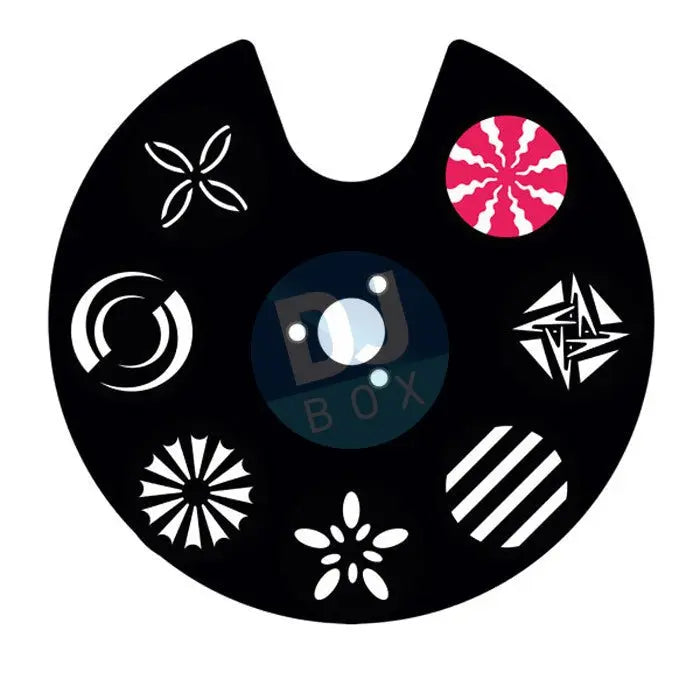

Gobo: 1 glass + 6 metal gobos
Gobo functions: Gobo-flow effect, Gobo shake
Rotation: Bi-directional

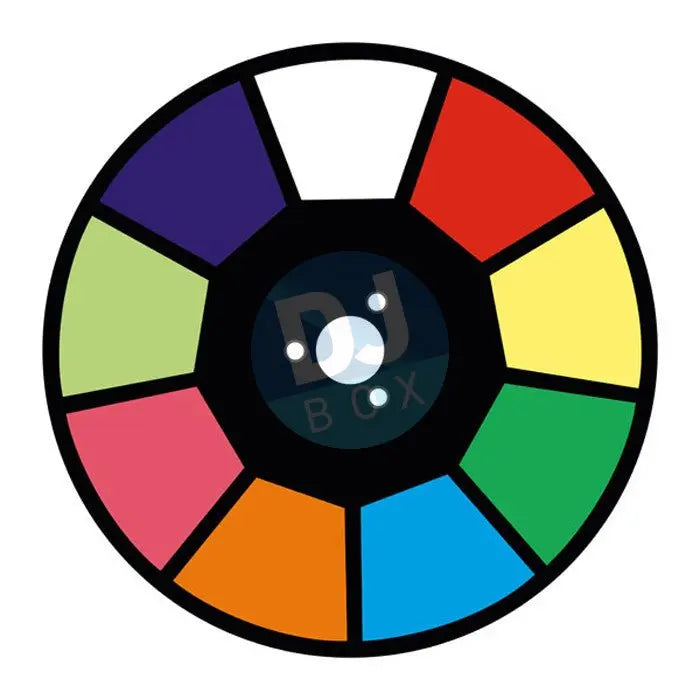

Colours: 8 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect
Physical
Colour: Black
Housing: Metal & Flame-retardant plastic
Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 238 x 202 x 357 mm
Weight: 6Kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
