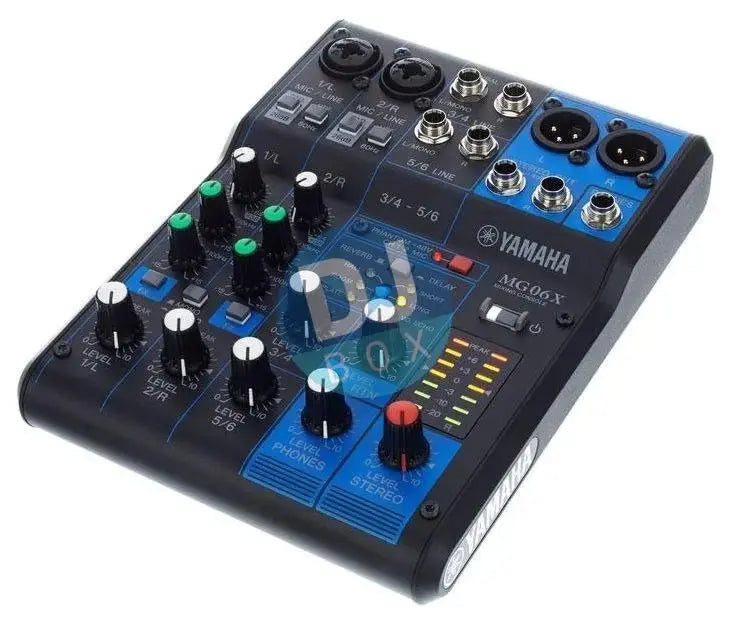

Yamaha MG06X Professional Audio mixer
Description
Yamaha MG06XU Professional Audio mixer
For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.
Overview
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
"D-PRE" mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
Net Weight: 0.9 kg (1.98 lbs.)
Specs
Outline
Mixing capability On-board processors SPX algorithm: 6 programs
I/O Phantom power +48 V
Input Channels Mono[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
PHONES 1
Bus Stereo: 1
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -88 dB
Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption 12 W
Dimensions W 149 mm (5.9")
H 62 mm (2.4")
D 202 mm (7.9")
Net weight 0.9 kg (1.98 lbs.)
Accessories Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others Operating Temperature: 0 to +40˚C
