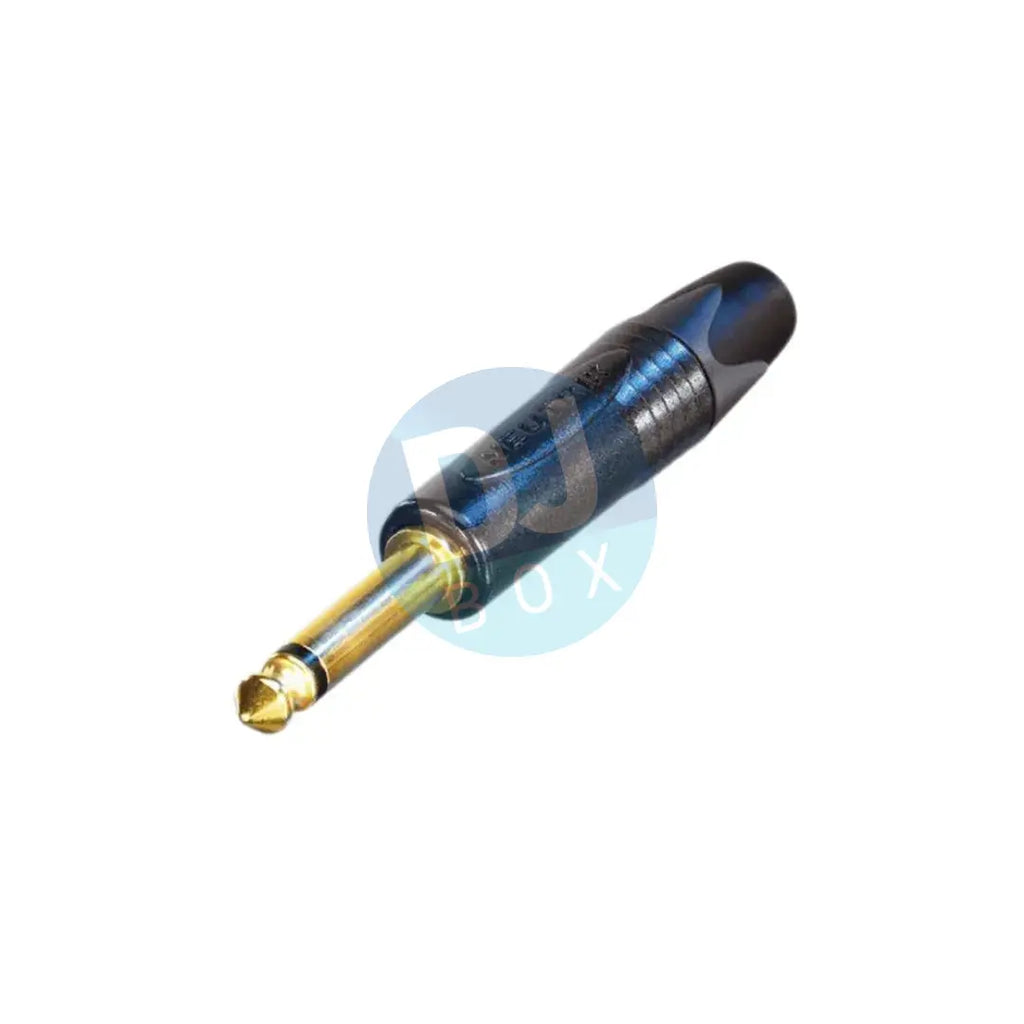

Neutrik® NP2X-B mono jack plug
Description
Reliable Neutrik® NP2X-B Mono Jack Plug for Top-Quality Audio Performance
Neutrik® NP2X-B mono jack plug
2 pole 1/4" professional phone plug, gold contacts, black shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
| Product | |
| Title | NP2X-B |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 1 mm² |
| Wiresize | 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
.
When it comes to professional audio equipment and connectors, Neutrik® is one of the most trusted brands in the industry. The Neutrik® NP2X-B is a mono jack plug that is widely used in many audio applications, from musical instruments and sound systems to studio and broadcast equipment.
Made with high-quality materials and precision engineering, the Neutrik® NP2X-B mono jack plug is renowned for its reliability, durability, and superior audio performance. This connector features an easy-to-assemble design with a robust metal construction that can withstand the rigors of heavy use and abuse.
Whether you are a musician, audio engineer, or sound technician, the Neutrik® NP2X-B can help you achieve top-quality audio performance with minimal noise, distortion, and interference. This mono jack plug is compatible with various cable sizes and types, making it a versatile choice for any audio setup or application.
If you are looking for a high-quality Neutrik® NP2X-B mono jack plug, you can buy it now from our online store. We offer genuine Neutrik® products at competitive prices, with fast shipping and excellent customer service. Don't settle for less than the best when it comes to your audio equipment and connectors - choose Neutrik® for reliable and top-quality performance!
