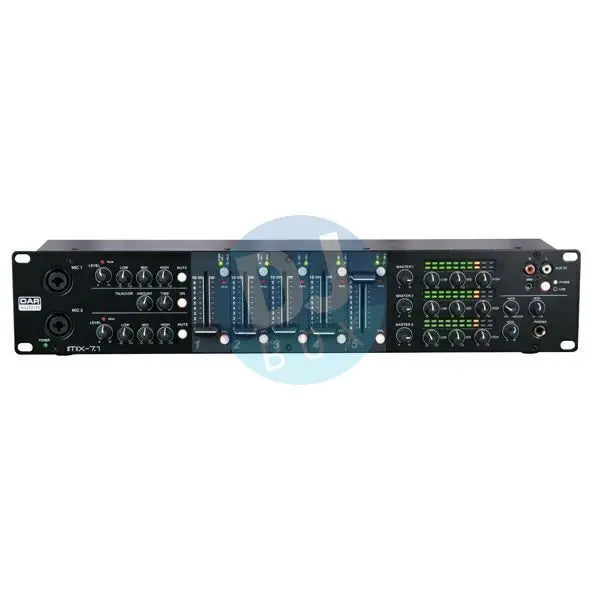

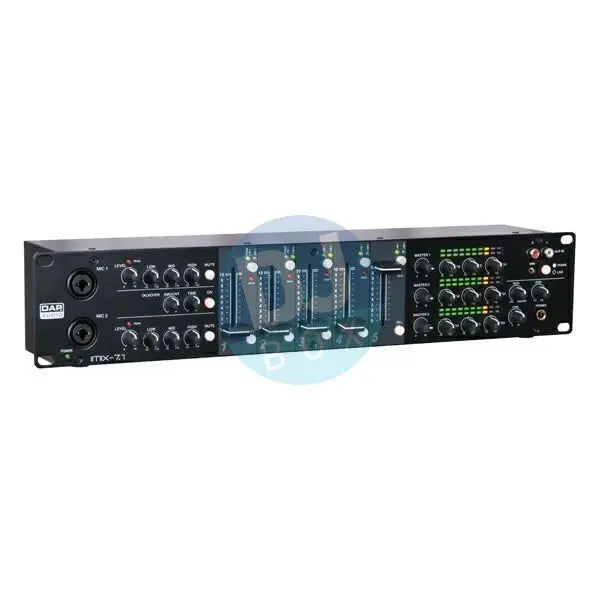

Dap Audio IMIX 7.17 Channel 2U Install Mixer


Price:
€265

Tax included Shipping calculated at checkout

Stock:
In stock
Add to Wishlist
My Wishlist

Description

Top Features of the Dap Audio IMIX 7.17 Channel 2U Install Mixer

The IMIX-7.1 is a compact installation mixer for many kind of applications. It has a basic design which makes it easy to control. Gain settings are at the backside which prevents wrong use by non-technical users. The 3 Master outputs with a low mid and high tone control gives the possibility to set up different sound levels for 3 area’s. At the front it has a direct input for 2 microphones, 1 Line source or a Phone/MP3 device with a dedicated impedance switch.

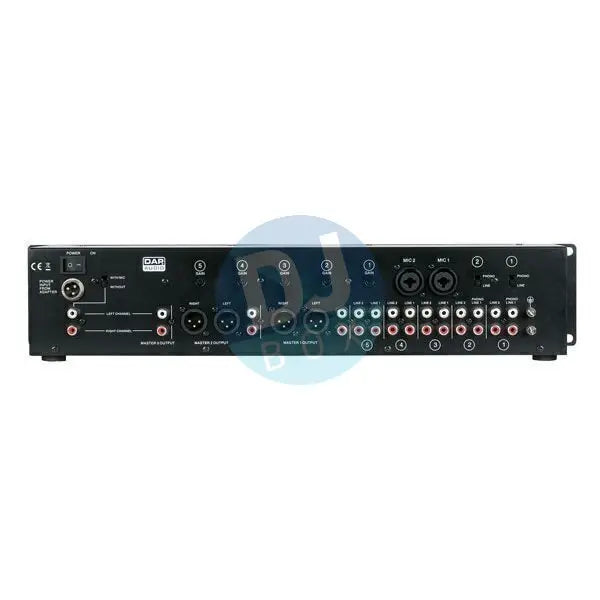

  • Gain settings at backside
  • Special front input for phone/mp3 devices
  • 2 Mic and11 Line inputs
Mono Inputs 2
Mono Input Connector 3pole XLR, TRS balanced 6,3mm
Stereo Inputs 10
Stereo Input Connector RCA
Phono Audio Inputs 2
Phono Audio Input Connector RCA
Auxilary Inputs 1
Auxilary Input Connector RCA, TRS balanced 3,5mm
Main Outputs 3
Main Output Connector 3pole XLR, RCA
Headphone Output 1
Headphone Output Connector TRS balanced 6,3mm
Record Output 1
Record Output Connector RCA
THD Distortion Level < 0.05%
Signal - Noise Ratio > 100dB
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20.000 Hz
Microphone Input Equalizer Range 12 dB
Parametric Microphone Equalizer 3 Bands
Microphone Input Fixed Frequencies 80, 1.000, 12.000 Hz
Parametric Main Equalizer 3 Bands
Main Output Equalizer Range 12 dB
Main Output Fixed Frequencies 80, 1.000, 12.000 Hz
LED Indicators Channel select, Clip, Output level, Signal
Power Supply 240 VAC 50-60Hz
Output Voltage 18 VAC
Power Consumption 16.5 W
Power Connector in Low Voltage DC plug
Height (mm) 88 mm
Width (mm) 95 mm
Length (mm) 481 mm
Flightcase Size 19"
Rack Units 2 U
Housing Metal
Colour Black
Weight 2,8 kg
IP Rating IP20(indoor use only)
Reference Standard CE, FCC, RoHS
Included Accessories Adapter
