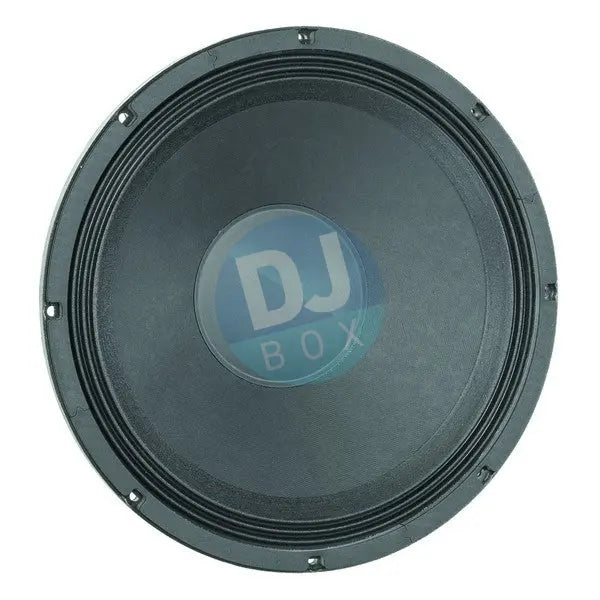

Eminence Kappa Pro - 15" Speaker 600 W 4 Ohm



KAPPA PRO-15LF Professional Series - Long throw, low frequency woofer recommended for pro audio in a vented bass enclosure.

SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance 4 ohms
Power Rating Watts 600 W / Music Program 1200 W
Resonance 37 Hz
Usable Frequency Range 38 Hz - 1.8 kHz
Sensitivity 96.8
Magnet Weight 120 oz.
Gap Height 0.375", 9.53 mm
Voice Coil Diameter 3", 76 mm

THIELE & Small Parameters
Resonant Frequency (fs) 37 Hz
DC Resistance (Re) 3.34
Coil Inductance (Le) 0.94 mH
Mechanical Q (Qms) 10
Electromagnetic Q (Qes) 0.33
Total Q (Qts) 0.32
Compliance Equivalent Volume (Vas) 183.23 liters / 6.47 cu. ft.
Peak Diaphragm Displacement Volume 676.5 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 15.4 T-M
Diaphragm Mass inc. Airload (Mms) 99 grams
Efficiency Bandwidth Product (EBP) 114
Maximum Linear Excursion (Xmax) 7.9 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 18.0 mm

MOUNTING Information
Recommended Enclosure Volume
Sealed N/A
Vented Acceptable
Overall Diameter 15", 381 mm
Baffle Hole Diameter 14.0", 355.6 mm
Front Sealing Gasket fitted as standard
Rear Sealing Gasket fitted as standard
Mounting Holes Diameter 0.28", 7.1 mm Mounting Holes B.C.D. 14.56", 369.9 mm
Depth 6.57", 166.9 mm

MATERIALS of Construction
Copper voice coil
Kapton former
Ferrite magnet
Vented and extended core
Die-cast aluminum basket
Paper Cone
Cloth cone edge
Solid composition paper dust cap
