Dap Audio AMM 401 4 Channel Active Mixer


Price:
€99 €109

Tax included Shipping calculated at checkout

Stock:
In stock
Add to Wishlist
My Wishlist

Description

Superior Audio Processing with Dap Audio AMM 401

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

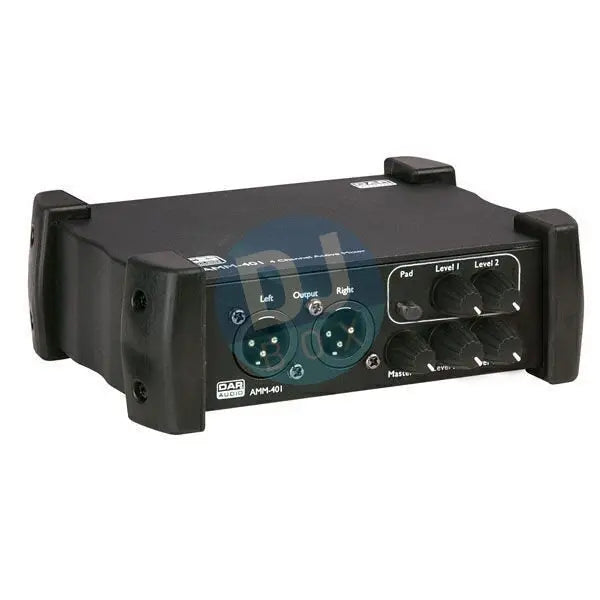

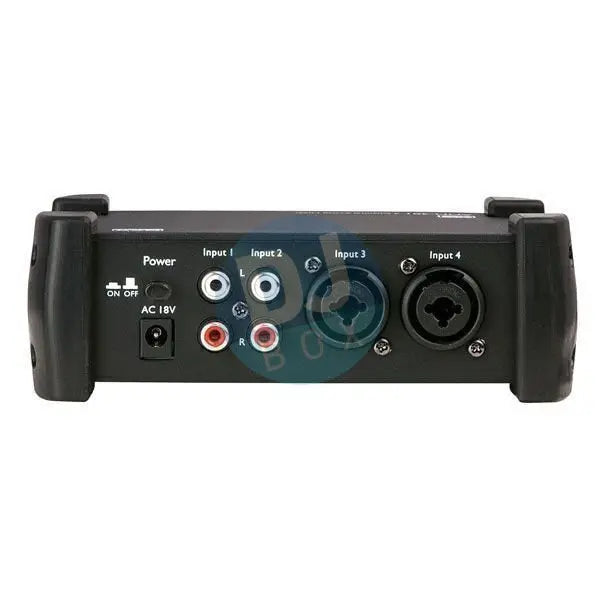

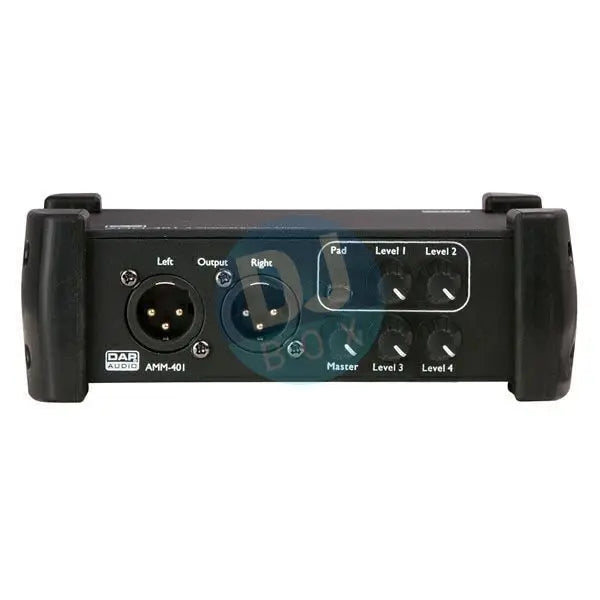

The AMM-401 is a 4 channel active mixer in a very compact housing. An ideal audio tool for sound engineers or musicians that often need to improvise with unknown situations. It can also be helpful to extend an USB audio interface with some extra inputs. It is a mixer in the most simplistic way with 4 volume controls for 2 stereo and 2 mono inputs. The mono inputs can be used for instruments microphones but also line level sources with the use of the PAD switch.

  • 2 stereo inputs
  • 2 mono inputs
  • Balanced outputs
  • Selectable line/instrument mono inputs
Mono Inputs 2
Mono Input Connector 3pole XLR, TRS balanced 6,3mm
Mono Input Impedance 50.000 Ω
Stereo Inputs 2
Stereo Input Connector RCA
Stereo Input Impedance 50.000 Ω
Main Outputs 1
Main Output Connector 3pole XLR
Main Output Impedance 12.000 Ω
THD Distortion Level < 0.01%
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20.000 Hz
Attenuation -10dB
Power Supply 240 VAC 50-60Hz
Output Voltage 18 VAC
Power Consumption 2.5 W
Power Connector in Low Voltage DC plug
Height (mm) 53 mm
Width (mm) 158 mm
Length (mm) 135 mm
Weight 0,7 kg
IP Rating IP20(indoor use only)
Housing Aluminium
Colour Black
LED Indicators Pad, Power
Reference Standard CE
Included Accessories Adapter
