Showtec DB-1-8 DMX Splitter


Price:
€129 €155

Tax included Shipping calculated at checkout

Stock:
In stock
Add to Wishlist
My Wishlist

Description

Showtec DB-1-8 DMX Splitter

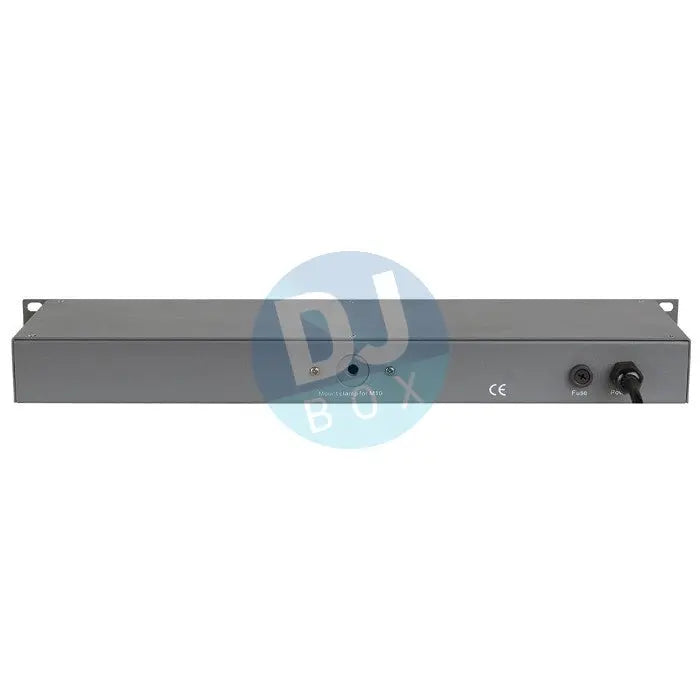

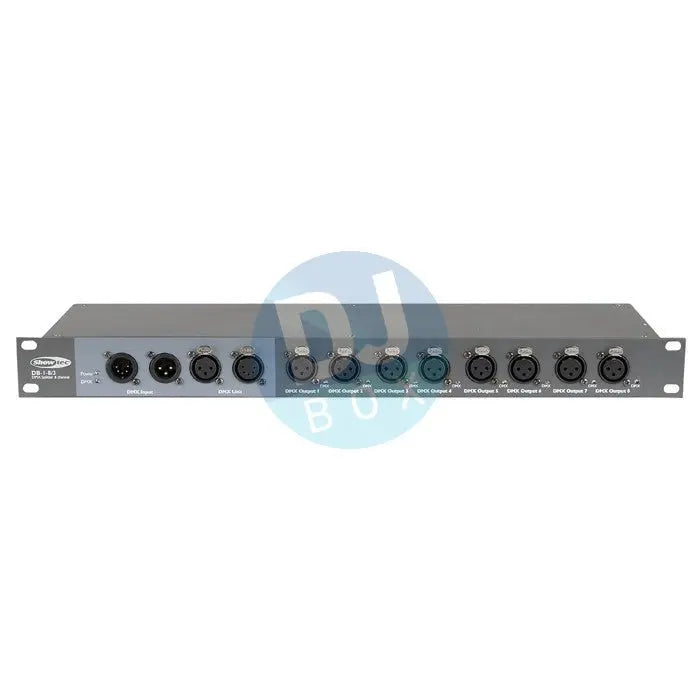

The DB models from Showtec are universal DMX512 splitters. They are designed to distribute the incoming DMX signal, in daisy chain configurations, into multiple separate outputs with an additional “Through” port. They can be mounted in any 19” rack or into the truss by the M10 nut on the rear end of the unit. It has clear LEDs to show the DMX signal status of each output and input. There are four models available, DB-1-4 with or without RDM which has 4 outputs and 3 & 5-pin XLR connectors, and the DB-1-8 with or without RDM which has 8 outputs with 3P XLR connectors.



Specifications

Input connectors: 3&5 Pole XLR M
Output connectors: 3 Pole XLR F
Power input: 230VAC, 50/60Hz
Dimensions: 483 x 134 x 46 mm (LxWxH)
Weight: 2,6 kg



Mechanical Specifications

Length (mm)
483 mm
Width (mm)
134 mm
Height (mm)
46 mm
Installation Depth (excl. connector)
134 mm
Weight
2.5 kg
Rack Units
1 U
IP Rating
IP20 (indoor use only)
Housing
Metal, Plastic
Colour
Gray
